ELITE LEGION Hot Selling Rotary Switch MFR01 Series

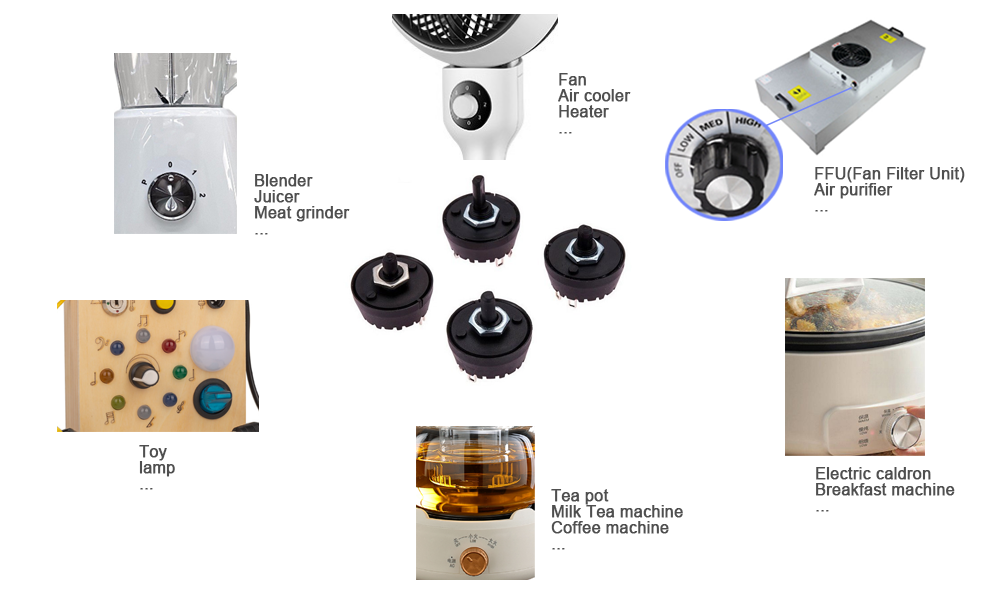

ELITE LEGION is an independent brand of Dongguan Shengjun Electronic Co., Ltd. Its MFR01 series circular rotary switch is widely used in common household appliances in daily life. As a professional manufacturer of electronic switches for more than ten years, MFR01 series is a hot selling product of Dongguan Shengjun Electronics Co., Ltd. MFR01 series rotary switch is highly favored by customers for its excellent quality, affordable price, large current, multi-position options, and durability!

The basic parameters are as follows

1. Application temperature range: 0~125℃

2. Test condition:

The switch is tested at a temperature range of 5~35℃and relative humidity range of 45~85%.

3. Rating :

8A 125/250VAC

12A-8(3)A 250V~μT125/55

4. Electric performance :

4-1. Contact resistance:

Measured by fall-of-potential method at dc 0.2v/1a should be less than 50mΩinitial.

4-2. Insulation resistance :

Measured with dc 500v applied between terminals of open contacts and between terminal of opposite polarity or metal part, should be more than 100MΩ.

4-3. Dielectric strength:

The switch shall withstand without breakdown a potential of ac 1500v 0.5mA for 1 minute

between terminals of open contacts and terminals of opposite polarity or metal part.

5. OPERATION FORCE:

NON—PULSE：800gf±300gf          PULSE：1600gf±500gf
